Nysha Mobility Tech Pvt Ltd

High Temp Multicore & Composite Cables

We design and manufacture a wide variety of high temperature multicore and composite cables using a variety of polymers.

These can be of various types such as:

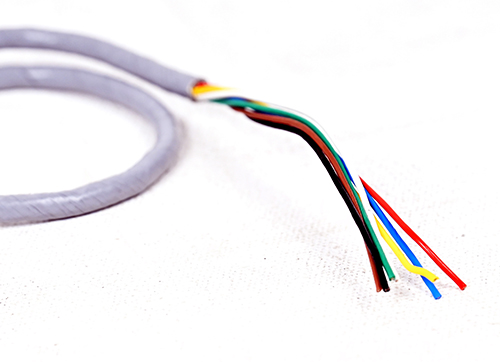

Multicore cables with High Temp Insulation & High Temp or PVC/TPE/TPU Sheath
Multicore cables with High Temp Insulation, High Temp or PVC/TPE/TPU Sheath as well as Braid and/or Foil Shielding

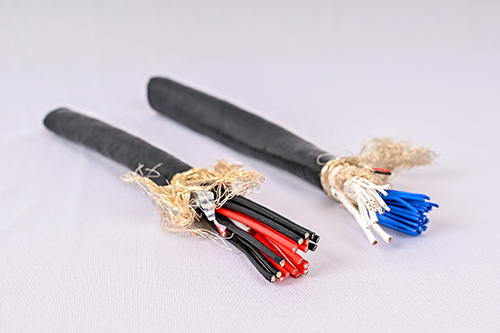

Composite cables with multiple Conductor Sizes, High Temp Insulation & High Temp or PVC/TPE/TPU Sheathing
Composite cables with multiple Conductor Sizes, High Temp Insulation, Braid and/or Foil Shielding & High Temp or PVC/TPE/TPU Sheathing
Composite cables with a combination of High Temp Insulation Polymers & High Temp or PVC/TPE/TPU Sheath

Conductor: ATC / ASPC / ANPC depending on insulation material

Insulation: FEP, PTFE, ETFE, PVDF, PFA, Silicon

Shielding if required: Aluminium Mylar Tape, ATC Braid, ASPC Braid, ANPC Braid

Sheathing: FEP, PTFE, ETFE, PVDF, PFA, Silicon, PVC, TPE, TPU or as per requirement

Voltage Rating: 250V / 600V / 1000V

Operating Temperature: upto 260^°C depending on insulation & sheathing material
