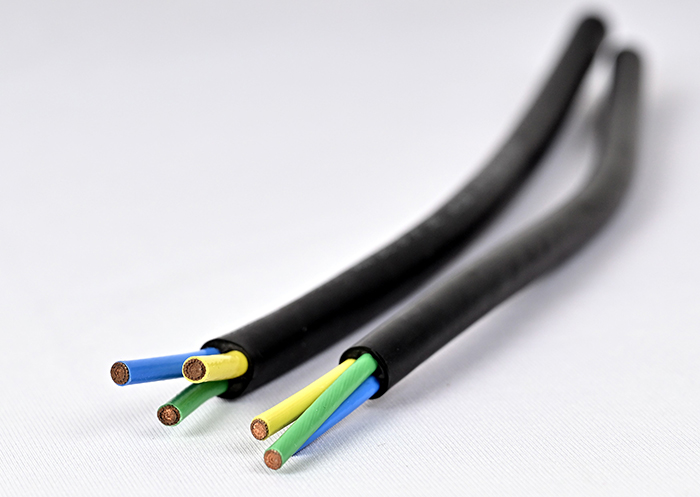

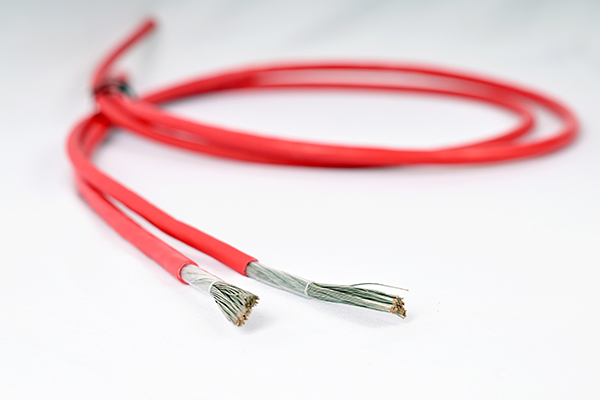

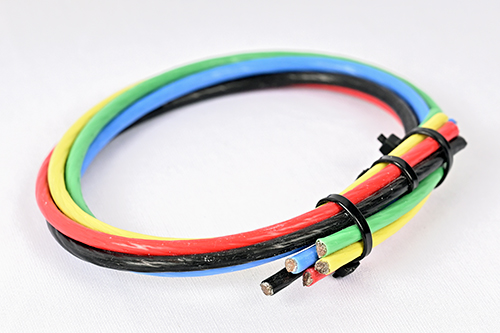

FEP Cables
FEP or Fluorinated Ethylene Propylene is an extruded fluoropolymer used for high temperature applications.
Technical Parameters
- Operating Temp: -50°C to 200°C
- Conductor Material: ATC / ASPC / NPC
- Voltage Rating: 250V / 600V / 1000V
- Extruded Cable
Properties
- High Chemical Resistance
- High Dielectric Strength
- High Abrasion & Corrosion Resistance
- Excellent High Frequency Electrical Properties
- Low Friction
- Highly Flexible
Applications
- Wire Harness Assembly
- Motors & Transformer Lead Wires
- Battery, UPS, Inverter
- Automotive & EV Applications
- Defence Applications
- Aerospace Industry
- Medical & Scientific Instruments
- Military & Naval Applications
- High Temp Industrial Equipment
- Chemical Industry Applications
- Oil & Gas Industry
Comparison in FEP & PVC Cables
| Property |
FEP Cable |
PVC Cable |
High Voltage Application Superior Inferior
(at lower wall thickness) |
Superior |
Inferior |
| Chemical Resistance |
Superior |
Inferior |
| Temperature Range |
Superior |
Inferior |
| Temperature Cycles |
Superior |
Inferior |
| Overall Cable Diameter |
Superior |
Inferior |
| Flexibility |
Superior |
Inferior |
| Price Advantage |
Inferior |
Superior |
Technical Data Sheet (According to JSS 51034)
| Nominal Cross Section Area |
Conductor Construction |
Nominal Outer Diameter |
| No. of Strands |
Dia of Strands |
Bunched Dia |
Max Conductor Resistance at 20°C |
ET - 250V AC |
E - 600V AC |
EE - 1000V AC |
| sqmm |
|
mm |
mm |
ohms/km |
mm |
mm |
mm |
| 0.034 |
7 |
0.08 |
0.24 |
570.9 |
0.56 |
0.76 |
1.00 |
| 0.0507 |
1 |
0.25 |
0.25 |
356.4 |
0.56 |
0.76 |
1.00 |
| 0.0568 |
7 |
0.10 |
0.30 |
332.3 |
0.61 |
0.81 |
1.07 |
| 0.0806 |
1 |
0.32 |
0.32 |
224.4 |
0.63 |
0.84 |
1.09 |
| 0.0887 |
7 |
0.13 |
0.38 |
210.5 |
0.69 |
0.89 |
1.14 |
| 0.1282 |
1 |
0.40 |
0.40 |
140.9 |
0.71 |
0.91 |
1.18 |
| 0.1409 |
7 |
0.16 |
0.48 |
133.7 |
0.79 |
0.99 |
1.24 |
| 0.154 |
19 |
0.10 |
0.50 |
126.7 |
0.79 |
0.99 |
1.24 |
| 0.2047 |
1 |
0.50 |
0.50 |
88.4 |
0.81 |
1.00 |
1.27 |
| 0.227 |
7 |
0.20 |
0.60 |
83.2 |
0.91 |
1.12 |
1.37 |
| 0.2407 |
19 |
0.13 |
0.63 |
80.2 |
0.91 |
1.12 |
1.37 |
| 0.3243 |
1 |
0.65 |
0.65 |
56.1 |
0.95 |
1.15 |
1.41 |
| 0.3547 |
7 |
0.25 |
0.75 |
52.5 |
1.07 |
1.27 |
1.52 |
| 0.382 |
19 |
0.16 |
0.80 |
49.8 |
1.07 |
1.27 |
1.52 |
| 0.5168 |
1 |
0.80 |
0.80 |
34.7 |
1.12 |
1.30 |
1.57 |
| 0.563 |
7 |
0.32 |
0.97 |
33.0 |
1.27 |
1.47 |
1.73 |
| 0.6162 |
19 |
0.20 |
1.00 |
30.3 |
1.27 |
1.47 |
1.73 |
| 0.8969 |
7 |
0.40 |
1.20 |
20.7 |
|
1.75 |
2.00 |
| 0.9627 |
19 |
0.25 |
1.25 |
19.1 |
|
1.75 |
2.00 |
| 1.2293 |
19 |
0.29 |
1.45 |
14.9 |
|
2.03 |
2.25 |
| 1.2 |
37 |
0.20 |
1.40 |
15.0 |
|
2.00 |
2.20 |
| 1.5272 |
19 |
0.32 |
1.60 |
12.5 |
|
2.15 |
2.40 |
| 1.9412 |
19 |
0.36 |
1.83 |
9.5 |
|
2.42 |
2.69 |
| 1.8886 |
37 |
0.25 |
1.75 |
10.0 |
|
2.35 |
2.60 |
| 2.3864 |
19 |
0.40 |
2.00 |
7.8 |
|
2.60 |
2.85 |
| 3.0848 |
19 |
0.45 |
2.25 |
6.0 |
|
|
3.17 |
| 2.9742 |
37 |
0.32 |
2.24 |
6.5 |
|
|
3.12 |
| 4.7397 |
37 |
0.40 |
2.82 |
3.9 |
|
|
3.68 |
| 8.6054 |
133 |
0.29 |
4.29 |
2.2 |
|
|
5.31 |
| 13.5889 |
133 |
0.36 |
5.41 |
1.4 |
|
|
7.45 |
