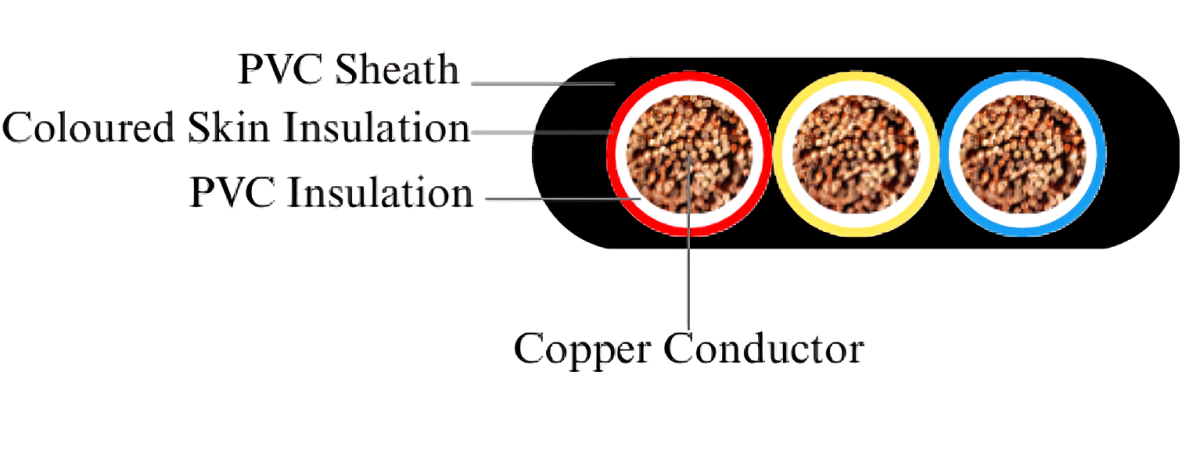

Flat Submersible Cable for Pump Motor

Conductor			Insulation Thickness (mm)	Sheath Thickness (mm)	Max Overall Dimensions (W X H) (mm)	Max Conductor Resistance @20°C Ω/Km	Current Carrying Capacity @40°C Amps
Area (Sqmm)	No of Strands	Max diameter of strands	Insulation Thickness (mm)	Sheath Thickness (mm)	Max Overall Dimensions (W X H) (mm)	Max Conductor Resistance @20°C Ω/Km	Current Carrying Capacity @40°C Amps
1.5	30	0.26	0.6	0.9	10.7 x 5.3	13.3	14
2.5	50	0.26	0.7	1	13.0 x 6.2	7.98	19
4	56	0.31	0.8	1	15.3 x 7.1	4.95	26
6	80 ± 4	0.31	0.8	1.1	19.2 x 8.4	3.3	30
10	80 ± 4	0.41	1	1.4	24.2 x 10.4	1.91	39
16	126 ± 8	0.41	1	1.4	29.0 x 12.4	1.21	55

Note: No. of strands and Dia of strands will be such as to meet the C.R. Value only

Note:: HP vs Current: The full load for submersible pump motors, 3 phase, 50 cycle, 415-425V

HP	5	7.5	10	12.5	15.5	17.5	20	25	30	35
Amp	7.5	11	14.9	18.9	22.5	25.2	28.4	35.6	42.3	50.4

HP	40	45	50	55	60	65	70	75	80
Amp	58.1	62.1	67.5	73.8	81	87.3	93.6	100.8	108

Ambient Temperature (°C)	30	35	40	45	50
Rating Factor	1.09	1.04	1	0.95	0.88

Nysha Mobility Tech 3C X AA Sqmm 1100V YY IS 694: 2010 CM/L 6200192818 MM/YYYY LLLL M
