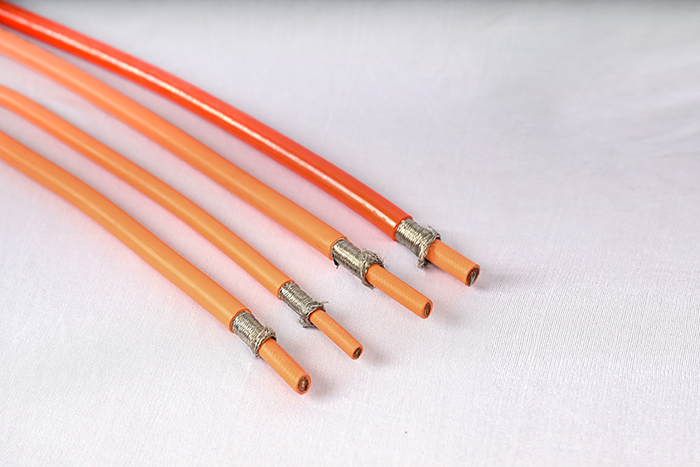

Shielded Cables


  • We manufacture a range of shielded cables for the automotive industry
  • Single and Multi core cables available with shielding
  • Sizes upto 1C x 240 mm2, 4C x 120 mm2, 25C x 2.5 mm2
  • Braiding with Annealed Bunched Copper / Annealed Tinned Copper
  • Shielding can include tapes (Aluminium-Mylar, Polyester etc) and drain wire
  • Flame Retardant, Heat Resistant, Highly Flexible
  • Bending Radius ranging from 3D to 10D
  • Manufactured as per IS 2465 / ISO 6722 / ISO 19642
  • IS 2465 : Temp Range: -40°C to 105°C
  • ISO 6722 : Class B – Temp Range: -40°C to 105°C
Class C Temp Range: - 40°C to 125°C
Class D Temp Range: - 40°C to 150°C
Class E Temp Range: - 40°C to 175°C
Class F Temp Range: - 40°C to 200°C
