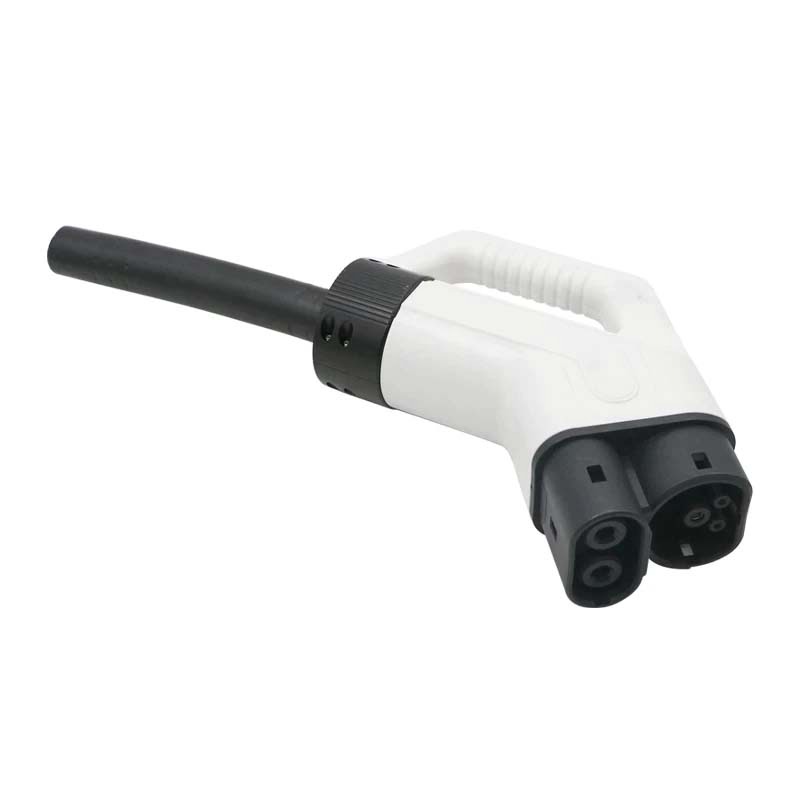

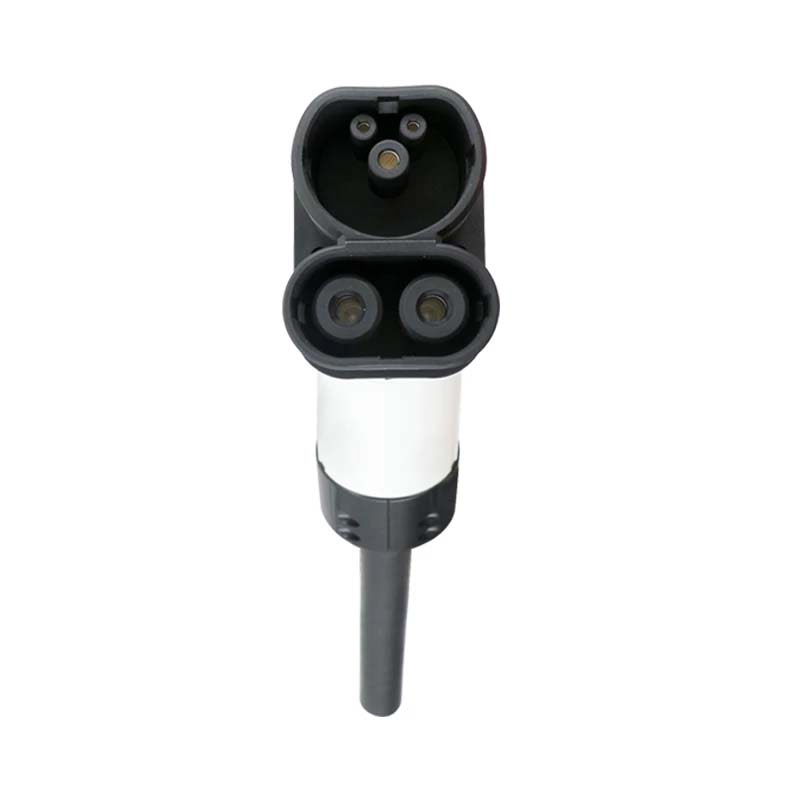

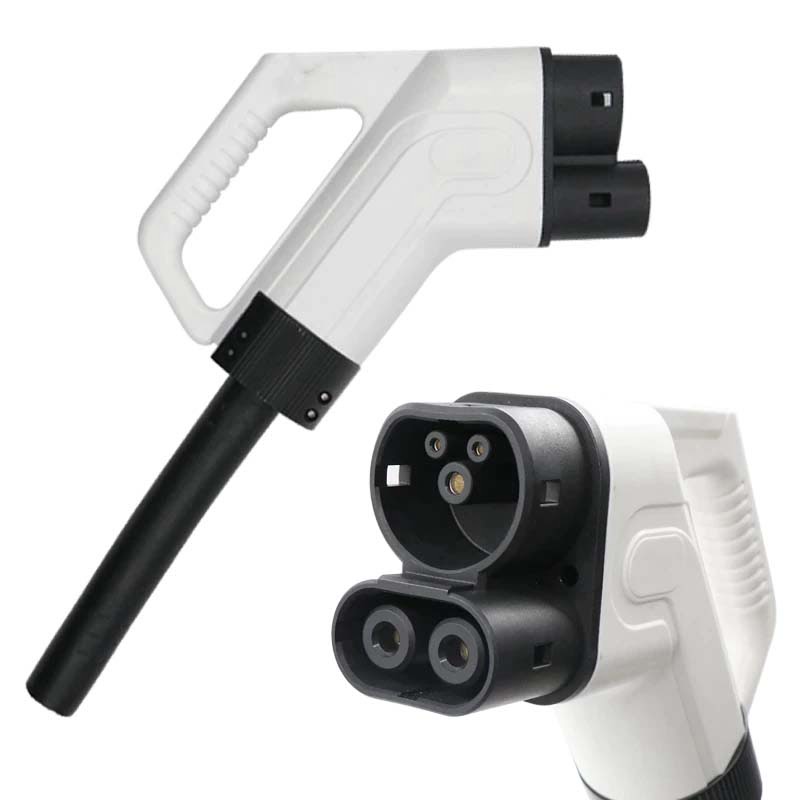

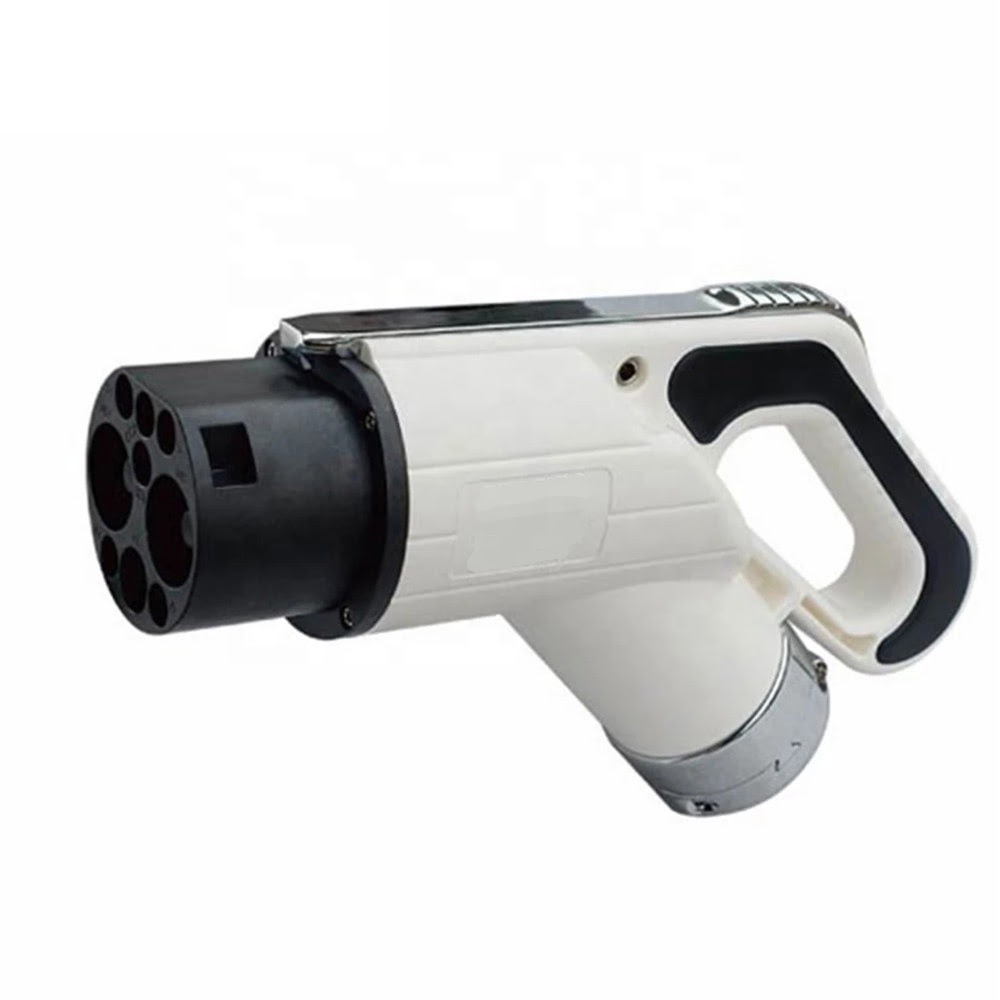

GB/T – DC Charging Gun Cable Assembly

  Products   /   Wire Harness   /   GB/T – DC Charging Gun Cable Assembly

Performance Standard: GB/T 20234.2-2015

Operating Temperature: -20°C to +70°C

Features

  • Insulated terminal design
  • Ergonomic “Pistol Grip” style (IP 54 rated) for easy plugging
  • Pressure, abrasion, and impact resistance
  • Great weatherability
  • High quality finish and appearance
  • Dust cap attached
  • Customisable cable length and colour

Electrical Properties

  • Rated Current 200A / 250A
  • Rated Voltage 750V
  • Withstand Voltage 5000V
  • Temperature Rise
  • Contact Resistance 0.5mQ Max
  • Insulation Resistance >1000MQ (DC 500V)

Material

  • Shell > Thermoplastic
  • Contact Bush > Copper alloy, Silver or Nickel plating
  • Inserts > Thermoplastic
  • Insulator Flammability > UL94 V-0

Mechanical Properties

  • Mechanical Life No-load plug in / pull out > 5,000 times
  • Impact of External Force Can afford 1m drop and 2t vehicle run over pressure
  • Locking of Connector Pulse Lock
  • Temperature Sensor of Gun PT 1000 on request

Cable Technical Parameters

Operating Temperature -20°C to +125°C
Withstand Resistance 3kV AC / 5mins
Dimension of Outer Jacket 38 ± 3 mm
Standard length of cable with Assembly 5mtrs / 7mtrs
Second Side Open or with lugs as per request

Standard Wiring

Rated Current Cable Specification Part No
200A 2 x 70mm2 + 1 x 25mm2 + Control & Can Wires DC-GB/T-200A-1-XX
250A 2 x 80mm2 + 1 x 35mm2 + Control & Can Wires DC-GB/T-200A-2-XX
